1.Thermosensitive Cable Material’s working principal
The insulation and sheath materials of ordinary power cables are generally polyvinyl chloride, cross-linked polyolefin, etc. These materials will age rapidly when the cable is overloaded or at high temperature until the cable fails. There is one of the most important safety current values in cable safety. The temperature of the wire itself will be different due to the different heat generated by the operation of the cable load. When the electrical appliance exceeds the safe current overload and causes the temperature rise, it is impossible to quickly and directly judge the safety of the cable.
Through long time research and application, Nanjing Kelongweier Chemical Machinery Co., Ltd. has improved the twin screw plastic extruder model, developed special screw components , summarized the characteristics of screw assembly, and developed a set of screw components, screw assembly and equipment for processing thermal sensitive materials. It can effectively control the temperature change in the process of heat-sensitive material processing, Colowe provides customers with a set of high-quality special solutions.
Extruder Technical Specification

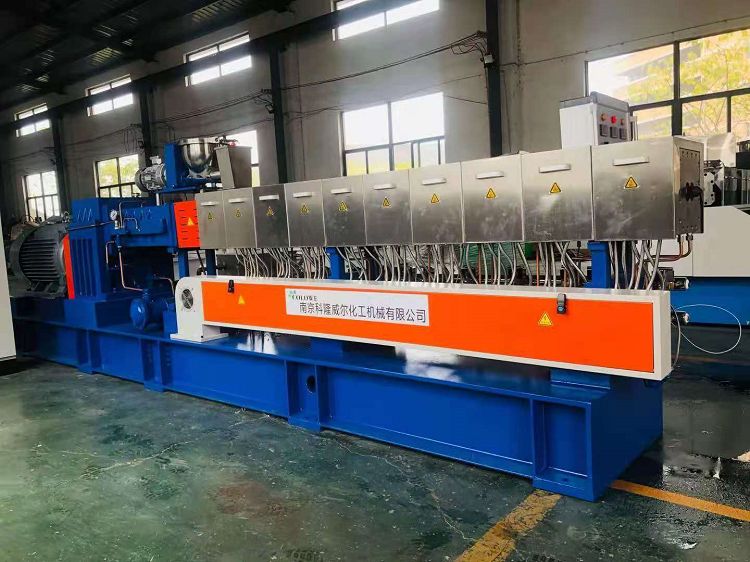

Twin Screw Extruder
Model | Diameter | L/D | Screw Speed | Power | Capacity |
COLO-20B | 21.7 | 32-44 | 60-600 | 5.5-7.5 | 5-50 |
COLO-35B | 35.6 | 32-52 | 60-600 | 15-22 | 20-100 |
COLO-40B | 41 | 28-52 | 60-600 | 22-30 | 50-250 |
COLO-50B | 51.5 | 28-52 | 60-600 | 45-75 | 150-350 |
COLO-65B | 62.5 | 28-64 | 60-600 | 75-90 | 200-500 |
COLO-75B | 71 | 36-64 | 60-600 | 110-160 | 350-800 |
COLO-95B | 93 | 36-64 | 60-600 | 250-315 | 800-2000 |
COLO-135B | 133 | 36-64 | 300-600 | 400-800 | 1500-3250 |
Three Screw Extruder
| NO. | model | Speed(rpm) | Diameter(mm) | L/D | Power(kw) | Output(kg/h) |
1 | TEC-35 | -600 | 35.6 | 24-64 | 30 | 150~200 |
2 | TEC-40 | -600 | 40.1 | 24-64 | 45 | 250~350 |
3 | TEC-52 | -600 | 51.4 | 24-64 | -90 | 600~800 |
4 | TEC-65 | -600 | 62.4 | 24-64 | 132~160 | 800~1200 |
5 | TEC-75 | -600 | 71 | 24-64 | 220~250 | 1500~2000 |
6 | TEC-95 | -600 | 93 | 24-64 | 400~450 | 2500~3500 |
Two Stage twin screw extruder
Model | Screw diameter(mm) | Screw speed(rpm/min) | Motor power(Kw) | Output(Kg/h) | |
TSK52/120 | TCK 52 | 51.4 | 500 | 45 | 100 300 |
TCE 120 | 120 | 85 | 30.37 | ||
TSCK52/120 | TCK 52 | 51.4 | 600 | 55 | 200 500 |
TCE 150 | 150 | 85 | 37.45 | ||
TSK 65/150 | TCK 65 | 62.4 | 500 | 90 | 200 500 |
TCE150 | 150 | 85 | 37.45 | ||
TSK 65/180 | TCK65 | 62.4 | 600 | 110 | 400 800 |
TCE180 | 180 | 85 | 45.55 | ||
TSK 75/180 | TCK75 | 71 | 500 | 132 | 400 800 |
TCE 180 | 180 | 85 | 45.55 | ||
TSK 75/200 | TCK 75 | 71 | 600 | 160 | 700 1500 |
TCE 200 | 200 | 85 | 55.75 | ||
TSK 95/220 | TCK 95 | 93 | 400 | 200 | 800 1600 |
TCE220 | 220 | 85 | 75.90 | ||
Customer Case:
