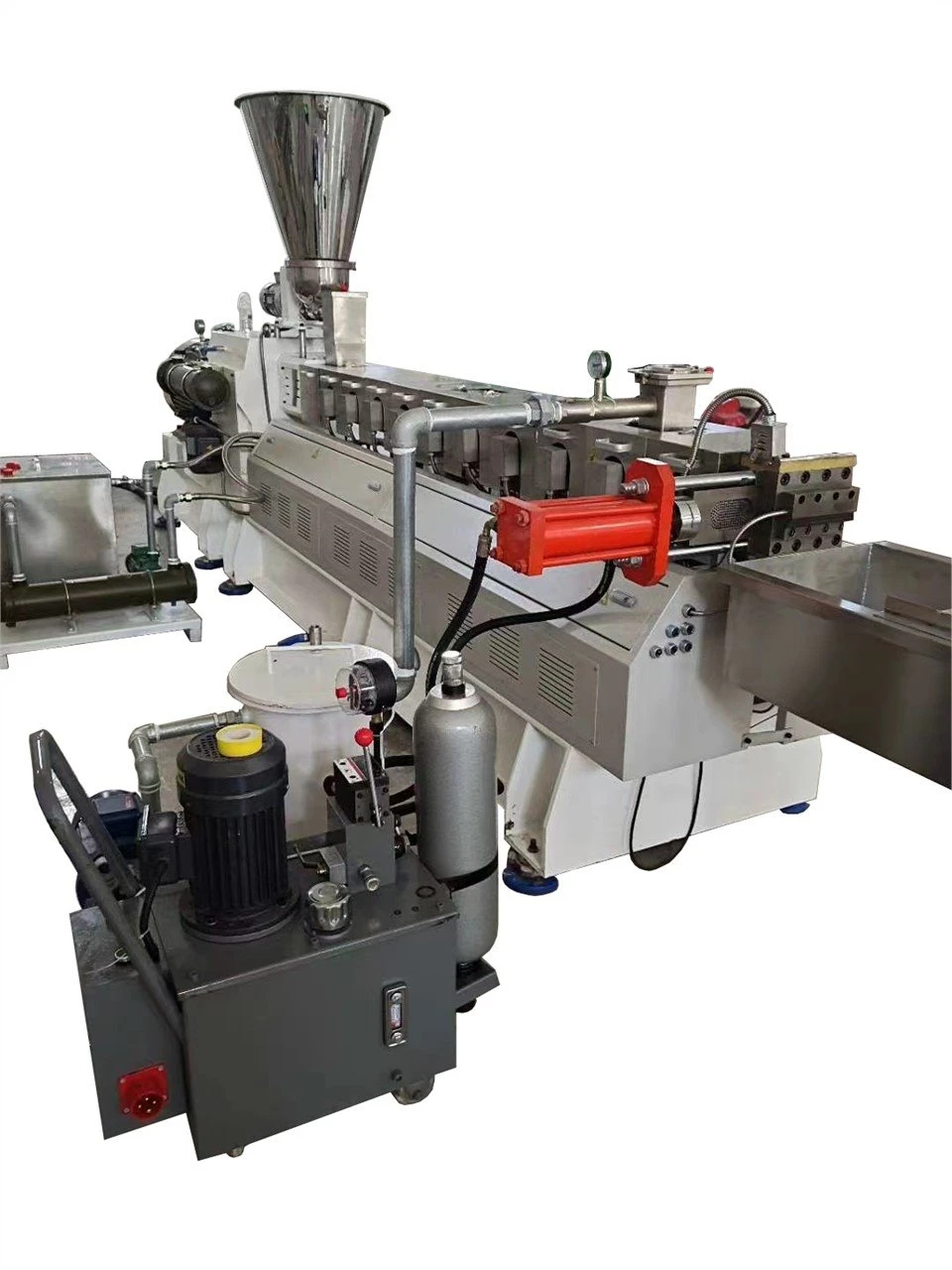

Plastic Extrusion Machine Pet Film Extrusion Line

Advantage of twin screw extruder:

High Torque Gearbox:

Extruder Torque CE&IOS 9001 certificate

High anti-abrasion and anti-corrosion material

Torque grade: T/A³＜18 domestic and overseas major parts

New internal structure design and high precision grinding of hardened gear teeth to ensure the gear box 's ceaseless high efficiency working.

Threaded Screw Element：

Screw Segments is customized with closely inter meshed design.Kneading blocks can be easily modified to suit different material.The Screw configuration can be designed and adjusted according to materials' characteristics.

Screw Configuration:

Engineer will make the Screw Configuration according to material to be produced and the extrusion process is as the following

The screw configuration and extrusion process is generally divided into five sections: conveying section, melting section, mixing section, exhaust section and homogenizing section.

1. Conveying section: convey materials to prevent overflow.

2. Melting section: this section can fully melt and homogenize the material through heat transfer and frictional shearing.

3. mixing section: the size of the material granulation is further refined and uniform, and an ideal structure is formed, which has the functions of distribution and dispersive mix.

4. exhaust section: impurities such as water vapor and low molecular weight substances are discharged.

5. Homogenization (metering) section: convey and pressurize;establish a certain pressure, so that the material at the die mouth has a certain density meanwhile it can be further mixed, and finally the purpose of smooth extrusion and granulation is achieved.

Double Screw extruder's output:
